13m Professional Camera Crane With Dutch Head

13m Professional Camera Crane With Dutch Head

1. 13m/ 42.65ft professional camera crane.

2. With pan tilt roll 3 axis dutch head.

3. The head use Japan imported motors and 3pcs slip rings.

4. The head can rotate 360 degree unlimited on X. Y. Z axis.

5. Use unique 4 wheels dolly.

6. The crane can be used by DV/professional/broadcast cameras.

  • Description
  • Additional Information
  • Inquiry

13m Professional Camera Crane With Dutch Head

Item No.: VC-L 13MD



L shape dutch head

L shape pan tilt roll 3 axis duch head can bear 20kgs weights (without camera)..

Use Japan imported motors with lower noise.

Use slip rings on head so it can rotate 360 degree unlimited on X.Y. Z axis.

Completely solve the problem of wires wrapping during shooting.

Optional U shape pan tilt roll dutch head (add extra cost).

Lens servo motor

To control iris and focus of broadcast cameras.

Main cable

To connect head and the control parts.

One control box

AC or DC operation.

Contain battery and with charger.

Three controllers

One head controller with joystick and one zoom controller.

One Z axis controller.

Remote control pan, tilt, roll, zoom, damp, camera start/stop etc.

Two 7 inch HD monitor

High birghtness LED monitors.

With monitor hood and monitor bar.

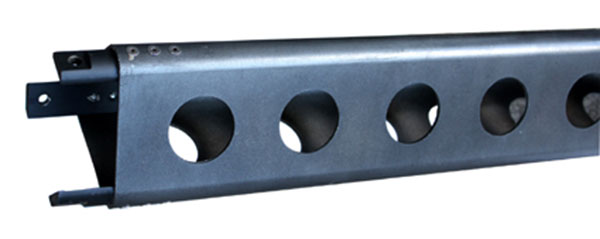

Arm body

Material is high-strength aluminum alloy.

Use triangle arm body with side length 188*188*188mm.

Consist of 11pcs 1.2m arm.

The crane front arm is 10.2m, the rear arm is 2.4m and the head length is 0.6m.

The crane total length is 13.6m.

Optional octagon arm.

Guy wires

With 4 sets stainless steel guy wires.

Use good stainless steel parts.

Four wheels dolly


Use three aluminum box (with wheels) as packing.

Head box with sponge inside to protect the parts.

Each arm is packed in one cloth bag for better protection (except for the biggest arm).


Lifetime Warranty

If the equipment has any problem within 1 year (under correct using), we will send free replacements.

After 1 year, we will offer free repair or just charge material cost for the replacements.


Product Applications


Customers Visit



Q: How to install the camera crane?

A: We have install video to guide you the installation.

Q: How many hours the camera crane can work with battery fully charged?

A: 4-8 hours

Q: Can the camera crane be directly connected to AC power ?

A: Need the help of a adapter.

Q: Is the camera crane water proof and dust proof?

A: Yes.

Q: Do you offer OEM service and logo print?

A: Yes.

Q: What is the shipping way?

A: We usually send the camera crane by sea (sea is the cheapest way with the longest delivery time).

Faster air or express (like DHL) is also accepted (batteries are forbidden to send by air ways).

We can also send the goods to your shipping agent in any city of China.

Additional Information

What Will You Get?

*L shape pan tilt roll 3 axis dutch head.
*One control box.
*Three controllers.
*Two 7 inch HD monitor.
*External power supply.
*11pcs 1.2 meters triangle arm with side length 188*188*188mm.
*4 sets stainless steel guy wires.
*Four wheels dolly.
*Install tools.
*Three aluminum boxes with wheels as packing.
* 1 year warranty and lifetime free repair.
