Jimmy Jib Accessories Jimmy Jib Pan Tilt Motor

Jimmy Jib Accessories Jimmy Jib Pan Tilt Motor

Optional jib length 6m, 8m, 10m, 12m, 15m, 18m and 25m

Specifications

Pan tilt head

Optional L/U shape pan tilt 2 axis head.

▪ L head can bear 15kgs weights.

▪ U head can bear 20kgs weights.

The head length is about 0.4m.

Use Japan imported motors with lower noise.

The slowest full turning speed ≤0.5 laps/min and the fastest speed ≥10 laps/min.

Lens servo motor

To control focus and iris of broadcast cameras.

Main cable

To connect head and the control parts.

Big control box

With buttons of power, charge, work, error, center, speed, damp, video in, video out etc.

Contain batteries and with charger.

Two controllers

One head controller with joystick + one zoom controller.

Remote control pan, tilt, REC, zoom etc..

10 inch HD monitor

With HDMI cable (with HDMI input).

With monitor hood.

Optional 7 inch or 10 inch SDI monitor (add extra cost).

The SDI monitor is with HDMI input/output and SDI input/output.

Arm body

Material is high-strength aluminum alloy use good spray paint.

Use triangle arm with side length 15*15*15cm.

Optional 1.2m or 1.5m arm.

The jib can be setup into shorter length.

Guy wires

With 4 sets stainless steel guy wires.

Use good stainless steel parts.

Dolly

Six wheels dolly.

The dolly height is about 1.5 meters.

The dolly wheels diameter is 25cm.

Packing

Use two or three aluminum box as packing.

The boxes are with sponge inside to protect the parts.

Each arm is packed in one cloth bag for better protection (except for the biggest arm).

Lifetime Warranty

If the equipment has any problem within 1 year (under correct using), we will send free replacements.

After 1 year, we will offer free repair or just charge material cost for the replacements.

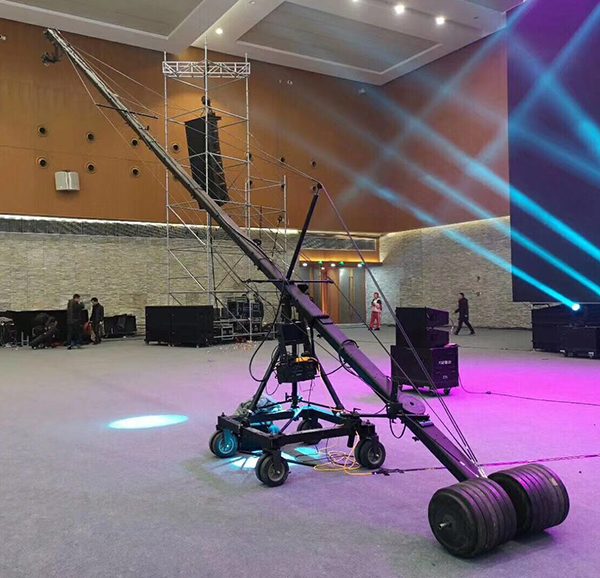

Product Applications

Customers Visit

FAQ

Q: How to install the camera crane?

A: We have install video to guide you the installation.

Q: How many hours the camera crane can work with battery fully charged?

A: 4-8 hours

Q: Can the camera crane be directly connected to AC power ?

A: Need the help of a adapter.

Q: Is the camera crane water proof and dust proof?

A: Yes.

Q: Do you offer OEM service and logo print?

A: Yes.

Q: What is the shipping way?

A: We usually send the camera crane by sea (sea is the cheapest way with the longest delivery time).

Faster air or express (like DHL) is also accepted (batteries are forbidden to send by air ways).
