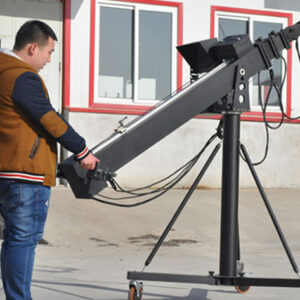

6.5m Telescopic Camera Crane Jib For TV
Item No.: VC-TD 6.5M
Specifications
Without head parts
Head parts include U shape pan tilt head, one head controller with joystick, one zoom controller, one main cable, one 10 inch HD monitor.
Can be used by Ronin or Movi (need Ronin connector from Ronin company)..
The crane top can bear 30kgs weights.
The max angle of elevation is +50 degree to -30 degree.
Maximum height of lens is 4.5m.
Optional shock absorbing head with damper (add extra cost).
One Battery Box
Offer power supply for arm telescopic movement.
Contain battery and charger.
One controller
One arm controller with joystick to control arm telescopic movement and speed.
Arm body
Use imported motors and parts to make arm telescopic movement more smooth and quiet.
Use 4pcs upgraded square shape arm.
Material is high strength aluminum alloy.
Telescopic range is from 2.7m to 6.5m.
The crane min length is 2.7m and the max length is 6.5m.
Arm telescopic speed is adjustable. The max speed is 0.5m/sec.
Customized telescopic speed is accepted (add extra cost).
Motorized height adjusted dolly

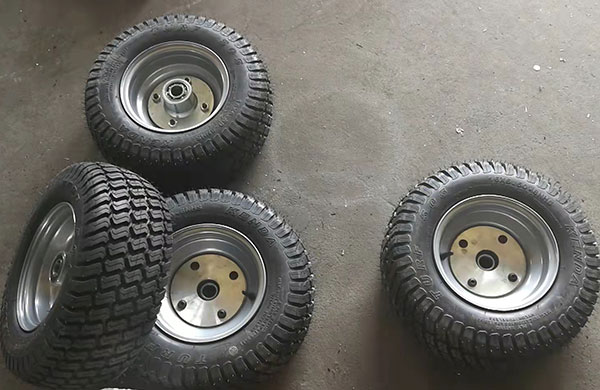

Use four inflatable wheels.
Four wheels dolly height adjusted range is from 1.6m to 2.2m.
With four leveling legs.
With eight track wheels which can be directly used on tracks.
The tracks wheels are 4 group 2pcs wheels.
With one battery box (contain battery and charger).
With one pull rod.
We might upgrade the wheels so please make the object as the standard.
Counterweights
With square shape counterweights.
The weights are on the top of telescopic arm.
Packing
Use customized wood boxes to pack arm and dolly.
The box is with sponge inside to protect the parts.
Lifetime Warranty
If the equipment has any problem within 1 year (under correct using), we will send free replacements.
After 1 year, we will offer free repair or just charge material cost for the replacements.
Test Videos
Product Applications
Customers Visit
FAQ
Q: How to install the camera crane?
A: We have install video to guide you the installation.
Q: How many hours the camera crane can work with battery fully charged?
A: 4-8 hours
Q: Can the camera crane be directly connected to AC power ?
A: Need the help of a adapter.
Q: Is the camera crane water proof and dust proof?
A: Yes.
Q: Do you offer OEM service and logo print?
A: Yes.
Q: What is the shipping way?
A: We usually send the camera crane by sea (sea is the cheapest way with the longest delivery time).
Faster air or express (like DHL) is also accepted (batteries are forbidden to send by air ways).
We can also send the goods to your shipping agent in any city of China.
Additional Information
What Will You Get? | * Without head parts. |
---|
