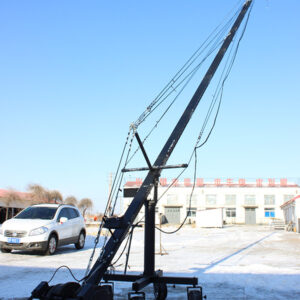

Camera Crane Triangle Jimmy Jib Use 6 Wheels Dolly

Camera Crane Triangle Jimmy Jib Use 6 Wheels Dolly

1. 15m/49.2ft camera crane Jimmy Jib.

2. Be used by DV/DSLR/EX/professional/broadcast cameras.

3. Use motorized pan tilt head with Japan motors.

4. Use 6 wheels dolly.

  • Description
  • Additional Information
  • Inquiry

Camera Crane Triangle Jimmy Jib Use 6 Wheels Dolly

Item No.: VC-M 15M



Specifications

Pan tilt head

Optional L/U shape pan tilt 2 axis head.

▪ L head can bear 15kgs weights.

▪ U head can bear 20kgs weights.

Optional head designs to meet different demand.

The head length is about 0.4m.

Use Japan imported motors with lower noise.

The slowest full turning speed ≤0.5 laps/min and the fastest speed ≥10 laps/min.

With different connectors (include 8 pins, 12 pins, LANC, DSLR, EX1 etc.).

Optional pan tilt roll 3 axis dutch head (add extra cost).

Optional slip rings used on 3 axis head (add extra cost).

Lens servo motor

To control focus and iris of broadcast cameras.

Main cable

To connect head and the control parts.

Big control box

With buttons of power, charge, work, error, center, speed, damp, video in, video out etc.

Contain batteries and with charger.

Two controllers

One head controller with joystick + one zoom controller.

Remote control pan, tilt, REC, zoom etc..

DSLR controller

Be used by Canon DSLR cameras.

With iris and focus functions.

Can be used by 5D2, 5D3, 5DS, 6D, 7D etc.

10 inch HD monitor

With HDMI cable (with HDMI input).

With monitor hood.

Optional 7 inch or 10 inch SDI monitor (add extra cost).

The SDI monitor is with HDMI input/output and SDI input/output.

Arm body

Material is high-strength aluminum alloy use good spray paint.

Use triangle arm with side length 15*15*15cm.

Consist of 10pcs 1.5 meters arm.

The crane can be setup as 15m, 12m and 9m.

Guy wires

With 4 sets stainless steel guy wires.

Use good stainless steel parts.

Dolly

Six wheels dolly.

The dolly height is about 1.5 meters.

The dolly wheels diameter is 25cm.

Packing

Use three aluminum box as packing.

The boxes are with sponge inside to protect the parts.

Each arm is packed in one cloth bag for better protection (except for the biggest arm).



Lifetime Warranty

If the equipment has any problem within 1 year (under correct using), we will send free replacements.

After 1 year, we will offer free repair or just charge material cost for the replacements.



Product Applications



Customers Visit



FAQ

Q: How to install the camera crane?

A: We have install video to guide you the installation.

Q: How many hours the camera crane can work with battery fully charged?

A: 4-8 hours

Q: Can the camera crane be directly connected to AC power ?

A: Need the help of a adapter.

Q: Is the camera crane water proof and dust proof?

A: Yes.

Q: Do you offer OEM service and logo print?

A: Yes.

Q: What is the shipping way?

A: We usually send the camera crane by sea (sea is the cheapest way with the longest delivery time).

Faster air or express (like DHL) is also accepted (batteries are forbidden to send by air ways).

We can also send the goods to your shipping agent in any city of China.

Additional Information

What Will You Get?

*L or U shape pan tilt head (use Japan motors).
*One lens servo motor.
*One main cable.
*One big control box (contain batteries).
*Two controllers.
*One set DSLR controller.
*One 10 inch HD monitor with HDMI cable.
*External power supply.
*10pcs 1.5m triangle arm with side length 15*15*15cm.
*4 sets stainless steel guy wire.
*Six wheels dolly.
*Install tools.
*Three aluminum boxes as packing.
*1 year warranty and lifetime free repair.
