- Additional Information
Camera Crane Jib 10m With Four Wheels Dolly
Item No.: VC-M 10M
Pan tilt head
Optional L/U shape pan tilt 2 axis head.
▪ L head can bear 15kgs weights.
▪ U head can bear 20kgs weights.
Optional head designs to meet different demand.
The head length is about 0.4m.

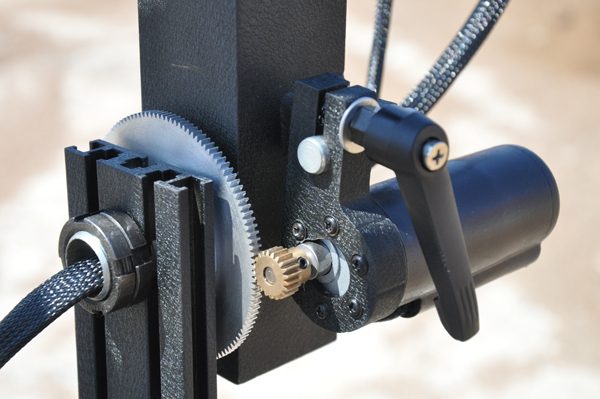

Use Japan imported motors with lower noise.
The slowest full turning speed ≤0.5 laps/min and the fastest speed ≥10 laps/min.
With different connectors (include 8 pins, 12 pins, LANC, DSLR, EX1 etc.).
Optional pan tilt roll 3 axis dutch head (add extra cost).
Optional slip rings used on 3 axis head (add extra cost).
Lens servo motor
To control focus and iris of broadcast cameras.
To connect head and the control parts.

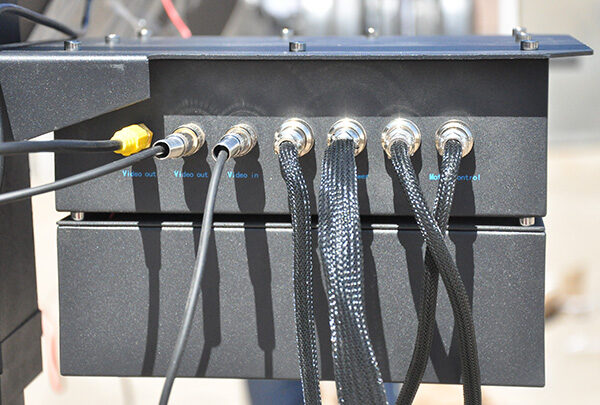

Big control box
With buttons of power, charge, work, error, center, speed, damp, video in, video out etc.
Contain batteries and with charger.

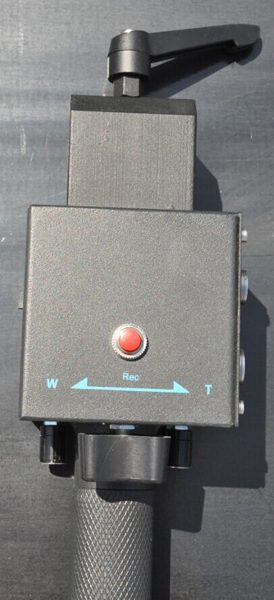

One head controller with joystick + one zoom controller.
Remote control pan, tilt, REC, zoom etc..
Be used by Canon DSLR cameras.
With iris and focus functions.
Can be used by 5D2, 5D3, 5DS, 6D, 7D etc.
10 inch HD monitor
With HDMI cable (with HDMI input).
With monitor hood.
Optional 7 inch or 10 inch SDI monitor (add extra cost).
The SDI monitor is with HDMI input/output and SDI input/output.
Material is high-strength aluminum alloy use good spray paint.
Use triangle arm with side length 15*15*15cm.
The crane can be setup into shorter length.
With 4 sets stainless steel guy wires.
Use good stainless steel parts.

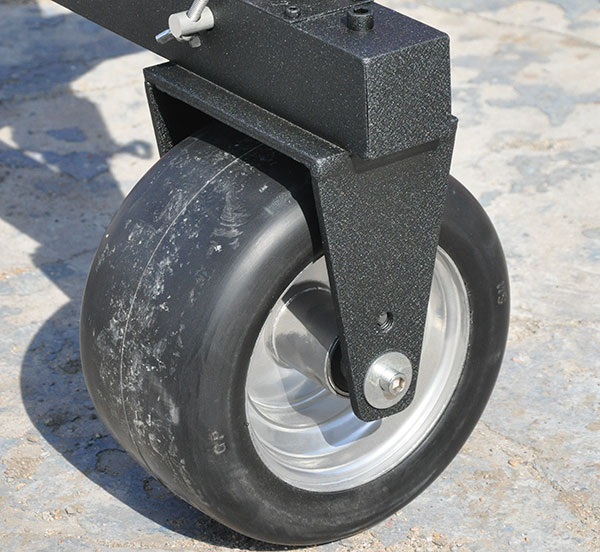

Four wheels dolly with pull rod.
The dolly height is about 1.5 meters.
The dolly wheels diameter is 25cm.
Use three aluminum box as packing.
The boxes are with sponge inside to protect the parts.
Each arm is packed in one cloth bag for better protection (except for the biggest arm).
If the equipment has any problem within 1 year (under correct using), we will send free replacements.
After 1 year, we will offer free repair or just charge material cost for the replacements.
Q: How to install the camera crane?
A: We have install video to guide you the installation.
Q: How many hours the camera crane can work with battery fully charged?
A: 4-8 hours
Q: Can the camera crane be directly connected to AC power ?
A: Need the help of a adapter.
Q: Is the camera crane water proof and dust proof?
Q: Do you offer OEM service and logo print?
Q: What is the shipping way?
A: We usually send the camera crane by sea (sea is the cheapest way with the longest delivery time).
Faster air or express (like DHL) is also accepted (batteries are forbidden to send by air ways).
We can also send the goods to your shipping agent in any city of China.
|What Will You Get?|
*L or U shape pan tilt head (use Japan motors).
