9 Meters Super Techno Telescopic Camera Crane

9 Meters Super Techno Telescopic Camera Crane

Item No.: 8D-090

Specifications

Pan and Tilt Head

1. Use L head which can bear 30kgs weights

2. Use Switzerland imported motors with low noise

3. The max camera lens height is 6.5m

4. The max angle of elevation is +50 degree to -30 degree

5. Use 2pcs slir pings to make the head can rotate unlimited on X/Y axis

6. It can be used by all kinds of DV/professional/broadcast cameras

Lens Servo System

1. To control focus and iris of broadcast cameras

2. Can be used by Fuji, Canon lens

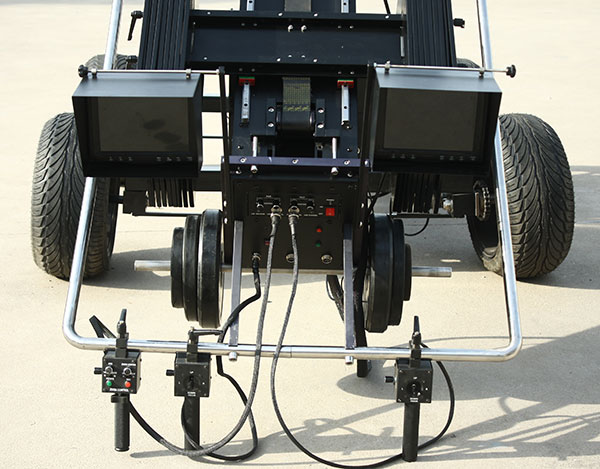

Control Box and 4pcs Controllers

1. Remote control of pan, tilt, zoom, iris, focus, camera start/stop etc.

2. AC or DC operation

3. Include 1pc four wheels dolly electric walk controller

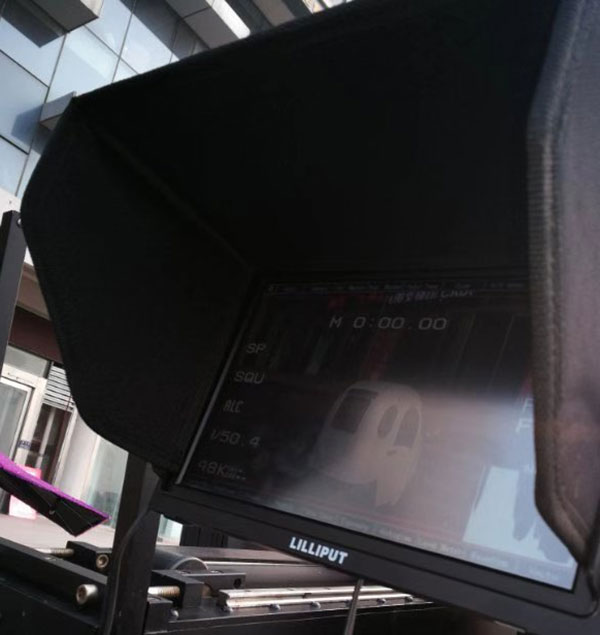

2pcs 10 inch HD Monitors

1. The monitors are 10 inch HD monitor

2. With monitor hood

3. The monitors are with HDMI and SDI connector

Arm Body

1. The material is super strong aluminum alloy

2. Use 3pcs rectangle telescopic arm body with different size

3. The min length is 4.8m and the max length is 9m

4. Telescopic range is 4.2m

5. The abutment height is from 1.4m to 1.9m

6. Telescopic speed is from 0.01m/s to 1m/s

7. The arm body angle is from +50° to -30°

Unique Four Wheels Dolly

1. Use electric walk mechanism to make the dolly can powered adjust walking

2. We have electrohydraulic adjustable four wheels dolly (with extra cost)

3. The adjustable length is from 1.4m to 1.9m

Packing

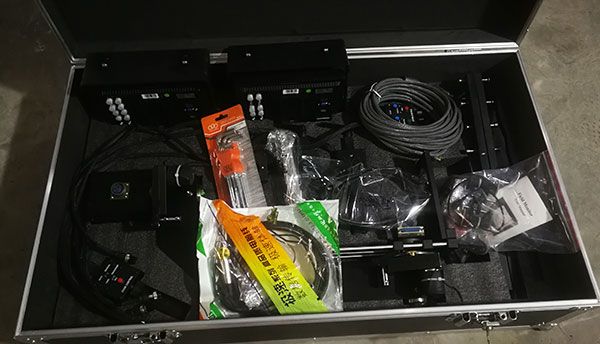

1. Use one aluminum box to pack head parts

2. Head box use sponge inside to protect the parts

3. Use wood box to pack other parts

4. The wood boxes are customized

With Counterweights

The crane NW is about 400kgs

Lifetime Warranty

It means if any device have problem within 1 year (under correct using),

we will send free replacements. After 1 year, we will offer free repair or

just charge material cost for replacements.

Test Videos

https://youtu.be/KEv14VMH-84

https://youtu.be/35M3Puu1HQM

https://youtu.be/H2AM6_-VlhU

https://youtu.be/aBxarSSusrs

https://youtu.be/BQtVwabxIkg

https://youtu.be/w8pPR121OhY

https://youtu.be/v3aNkbpmB4g
