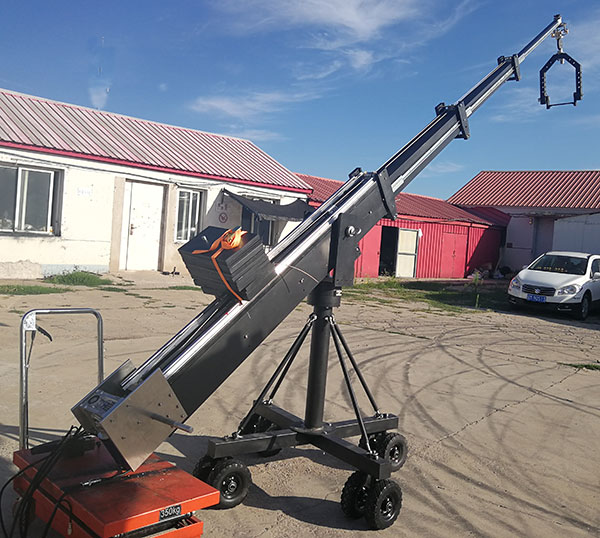

5m Square Arm Small Telescopic Camera Crane
1. Upgraded 5m small telescopic camera crane.
2. Telescopic movement is more smooth and quiet.
3. Telescopic range is from 2m to 5m.
4. Telescopic speed is adjustable.
5. Can be used by all cameras/Ronin/Movi.
6. Optional motorized height adjusted dolly with track wheels.
- Description
- Additional Information
- Inquiry
5m Square Arm Small Telescopic Camera Crane
Item No.: VC-TD 5M
Specifications
Pan tilt head
Use U shape pan tilt head which can bear 15kgs weights.
With damper on head.
With unique head connector.
Use Japan imported motors with lower noise.
The max angle of elevation is +50 degree to -30 degree.
Optional pan tilt roll 3 axis head (add extra cost).
Can buy without head parts and use Ronin/Movi.
Lens servo motor
To control focus and iris of broadcast cameras.
Main cable
To connect head and the control parts.
Big control box
Offer power supply for camera crane head parts.
With buttons of work light, error light etc..
Contain circuit board.
Contain batteries and charger.
One battery box
Offer power supply for arm telescopic movement.
Contain batteries and charger.
Three controllers
One head controller with joystick and one zoom controller.
One controller with joystick to control the arm telescopic movement.
Remote control arm telescopic movement, pan, tilt, zoom, camera start/stop etc..
AC or DC operation.
One DSLR controller
Include take pictures, record, pause, iris, focus functions.
With USB cable.
Can be used by 5D2, 5D3, 6D, 7D etc..
One 10 inch HD monitor
With monitor hood.
With HDMI cable.
Optional SDI connector (add extra cost).
Arm body
Use imported motors and parts to make arm telescopic movement more smooth and quiet.
Use 4pcs upgraded square shape arm.
Material is high strength aluminum alloy with good spay paint.
Telescopic range is from 2m to 5m.
The crane min length is 2m and the max length is 5m.
Arm telescopic speed is adjustable. The max speed is 0.5m/sec.
Customized telescopic speed is accepted (add extra cost).

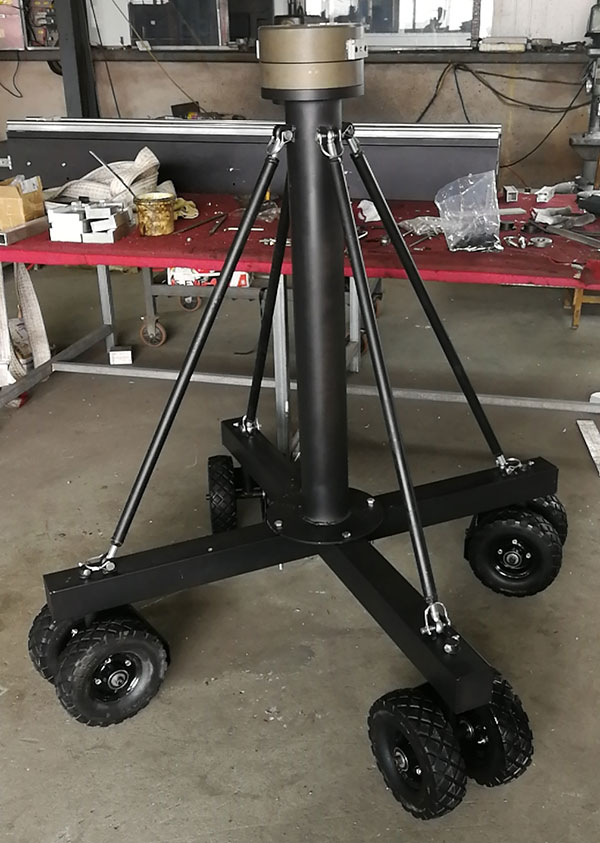

Upgraded 8 wheels dolly
With unique connector.
Make design more simple and nice.
Optional motorized height adjusted four wheels dolly (add extra cost).
Four wheels dolly height adjusted range is from 1.6m to 2.2m.
With four leveling legs.
With eight track wheels which can be directly used on tracks.
With one battery box (contain batteries and charger).
With one pull rod.
Optional four inflatable wheels.
We might upgrade the wheels so please make the object as the standard.
Counterweights
With square shape counterweights.
The weights are on the top of telescopic arm.
Packing
Use one aluminum box to pack head parts.
Use customized wood boxes to pack arm and dolly.
The boxes are with sponge inside to protect the parts.
Lifetime Warranty
If the equipment has any problem within 1 year (under correct using), we will send free replacements.
After 1 year, we will offer free repair or just charge material cost for the replacements.
Test Videos
Product Applications
Customers Visit
FAQ
Q: How to install the camera crane?
A: We have install video to guide you the installation.
Q: How many hours the camera crane can work with battery fully charged?
A: 4-8 hours
Q: Can the camera crane be directly connected to AC power ?
A: Need the help of a adapter.
Q: Is the camera crane water proof and dust proof?
A: Yes.
Q: Do you offer OEM service and logo print?
A: Yes.
Q: What is the shipping way?
A: We usually send the camera crane by sea (sea is the cheapest way with the longest delivery time).
Faster air or express (like DHL) is also accepted (batteries are forbidden to send by air ways).
We can also send the goods to your shipping agent in any city of China.
Additional Information
What Will You Get? | * U shape pan tilt head with damper (use Japan imported motors). |
---|
